Product Introduction

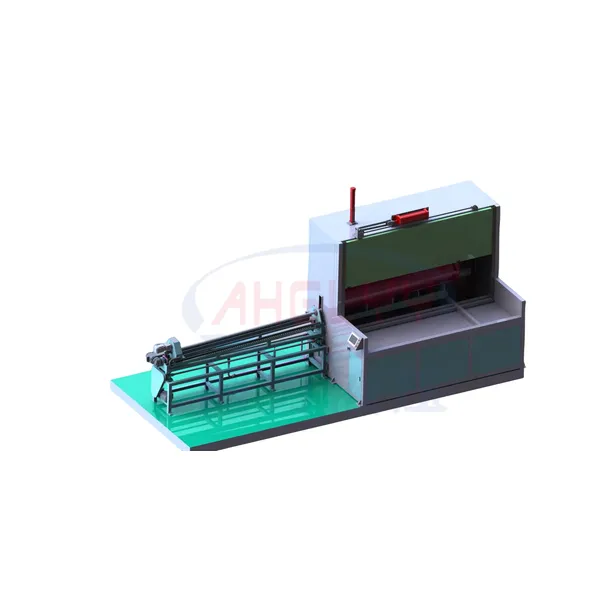

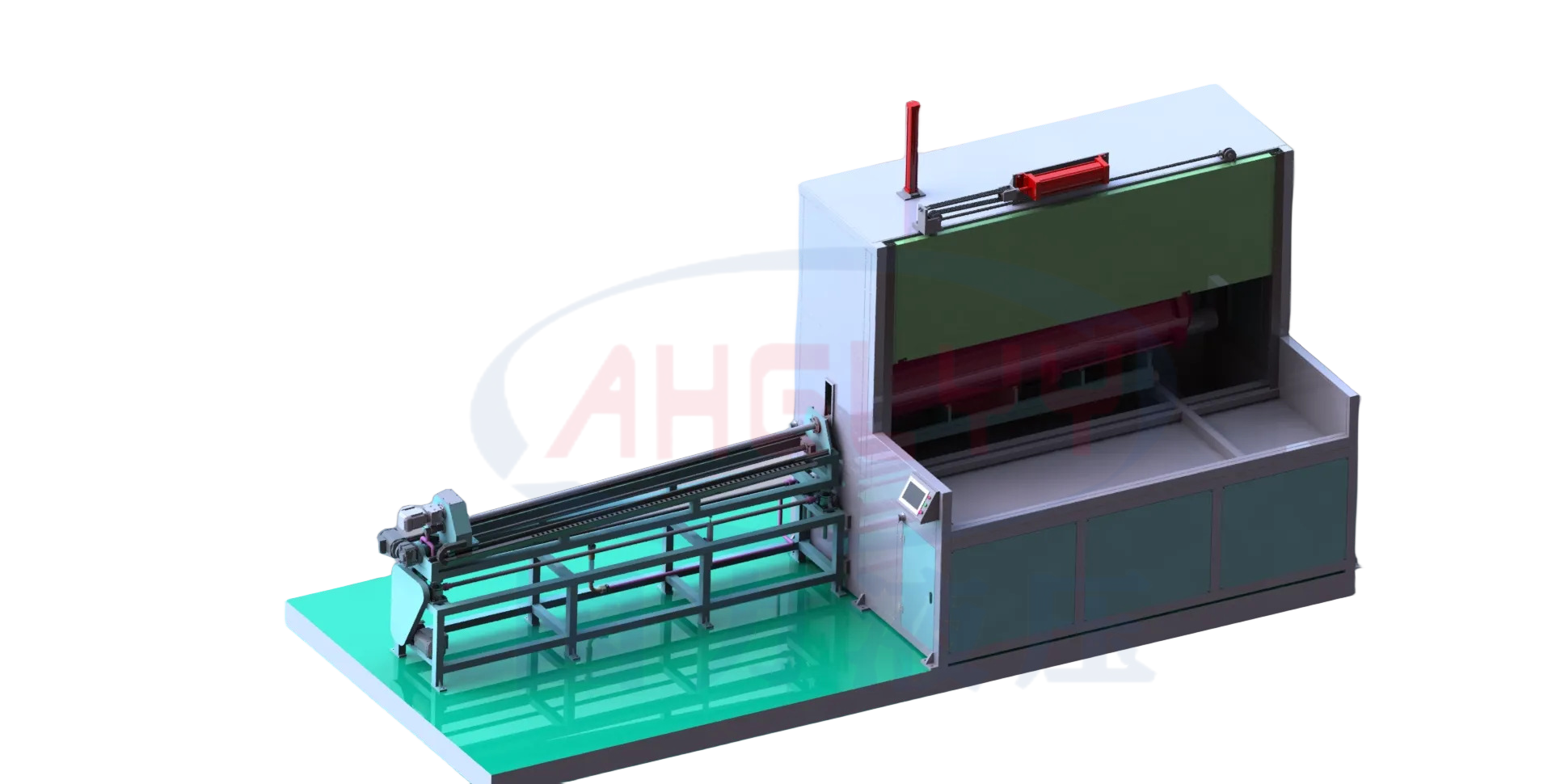

This type of equipment is mainly used for the automated cleaning of cylinder barrels. It is applicable for cleaning both through-hole and blind-hole cylinder barrels, and can simultaneously brush the inner hole of the cylinder barrel and flush the outer barrel. After flushing, compressed air is used to blow dry the water droplets on the inner wall of the cylinder barrel.

During operation, it is necessary to set the diameter, inner hole depth, and cleaning times of the cylinder barrel on the human-machine interface, and replace the brush head with the corresponding inner diameter. Manually, the cylinder barrel is lifted by a lifting tool and placed on the V-shaped bracket of the workbench, which automatically positions the center of the circle. The front port of the cylinder barrel must be pressed against the limit table to set the reference. After installation, press the start button: the bracket will automatically transport the cylinder barrel to the cleaning chamber and close the cleaning door, and the automatic cleaning will start. After cleaning, the cleaning door will open automatically; the bracket will transport the cylinder barrel back to the initial position, and then the indicator light will flash. At this point, the cylinder barrel can be manually replaced to start the next round of work.

This machine has the advantages of high single-piece automation, high cleaning quality, energy conservation, environmental protection, safety and reliability.
